Product Overview
Compared to the S13 series, this oil-Immersed transformer reduces core and copper losses, making it more energy-efficient. It operates with a noise level of ≤45dB(A), meeting the JB/T 10088 noise standard. The transformer also passed the GB 1094.5-2008 test, with a short-circuit withstand capacity of 150% and an oil temperature rise of ≤50K. It is suitable for a wide range of applications, including industrial enterprises, commercial buildings, infrastructure, and power grid systems.

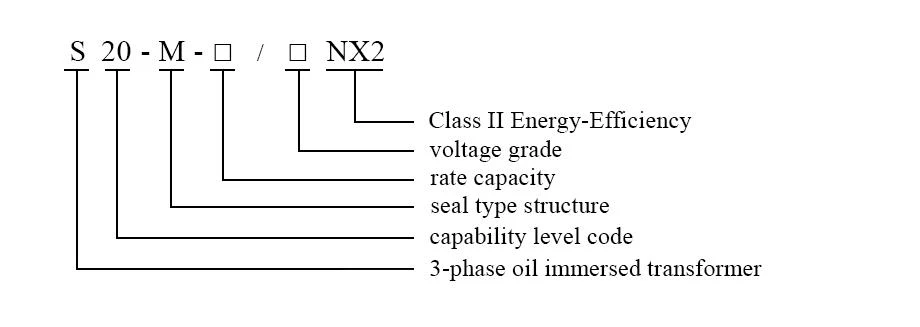

Type And Meaning
Product Features
Maintenance-free
The oil-immersed transformer is fully sealed, keeping the internal components isolated from external air, eliminating the need for core inspections or maintenance during normal operation.
Fully sealed oil tank
This transformer features a fully sealed oil tank that effectively prevents moisture and airborne impurities from entering, ensuring the transformer oil remains clean and uncontaminated.
Strong overload capacit
The short-circuit current tolerance of this transformer reaches 150%, and it can withstand short-term current shocks without being damaged.
Main Technical Parameters
|
Rate Capacity (kVA) |
Class II |
|||||
|
Electrical steel strip |
Amorphous alloy |
|||||
|
No-Load Loss(W) |
On-Load Loss(W) |
No-Load Loss(W) |
On-Load Loss(W) |
|||
|
Dyn11/Yzn11 |
Yyn0 |
Dyn11/Yzn11 |
Yyn0 |
|||
|
30 |
70 |
505 |
480 |
33 |
535 |
510 |
|
50 |
90 |
730 |
695 |
43 |
780 |
745 |
|
63 |
100 |
870 |
830 |
50 |
930 |
890 |
|
80 |
115 |
1050 |
1000 |
60 |
1120 |
1070 |
|
100 |
135 |
1265 |
1200 |
75 |
1350 |
1285 |
|
125 |
150 |
1510 |
1440 |
85 |
1615 |
1540 |
|
160 |
180 |
1850 |
1760 |
100 |
1975 |
1880 |
|
200 |
215 |
2185 |
2080 |
120 |
2330 |
2225 |
|
250 |
260 |
2560 |
2440 |
140 |
2735 |
2610 |
|
315 |
305 |
3065 |
2920 |
170 |
3275 |
3120 |
|
400 |
370 |
3615 |
3440 |
200 |
3865 |
3675 |
|
500 |
430 |
4330 |
4120 |
240 |
4625 |
4400 |
|
630 |
510 |
4960 |
320 |
5300 |
||
|
800 |
630 |
6000 |
380 |
6415 |
||
|
1000 |
745 |
8240 |
450 |
8800 |
||
|
1250 |
870 |
9600 |
530 |
10260 |
||
|
1600 |
1050 |
11600 |
630 |
12400 |
||
|
2000 |
1225 |
14640 |
710 |
14800 |
||
|
2500 |
1440 |
14840 |
860 |
16300 |
||
Note:
1. The diagonal load loss values in the table below are for Dyn11 connection group products.
2. Please contact us for technical parameters, dimensions and weight data of 10kV large-capacity distribution transformers.
3. We can provide transformers with various voltage levels, short-circuit impedances and coupling methods according to user requirements.
4. The weights and dimensions given in the table are for reference only. Please contact us for detailed specifications.
Application Scope
1. The installation height is usually not more than 1000m above sea level.
2. The ambient temperature does not exceed 40℃.
3. The minimum outdoor temperature is -25℃.
4. Transformers that can operate under special conditions can be provided according to user requirements.
FAQ
Q: How long is the delivery time?
A: Normal within 10 days. It depends on detail items and quantity.Please contact us for details.
Q: How to get product quotation?
A: You can contact us anytime through the contact information on the website. You will receive our response within 24 hours.
Q: What after-sales services can I enjoy?
A: The transformer comes with a one-year warranty. Long-term online technical support is provided, along with customer training, and regular updates to maintenance manuals and technical guides.
Q: How long is the average lifespan of a transformer?
A: The lifespan ranges from 20 to 40 years, influenced by factors such as maintenance level, operating environment, and load conditions.
Q: How to determine the parameters of the transformer?
A: We can usually find the parameters in transformer nameplates, drawings, outline drawings, and technical tables.
Q: Do you have oil-immersed transformers and dry-type transformers in stock?
A: No, as transformers require customized parameters based on demand, we usually need to design them after receiving an order.
