At 3 a.m., the distribution room in the chemical industrial park is silent when suddenly an alarm sounds from the switchgear equipment. The engineer on the late-night shift must quickly pinpoint the fault and perform the necessary operations under low-light conditions and high pressure; any hesitation could cause the fault to escalate. For medium- and high-voltage equipment such as 12 kV switchgear, the local interface serves as the "sole bridge" between the engineer and the equipment, and its interaction design directly determines operational efficiency: Traditional interfaces are cluttered with buttons, feature ambiguous labels, and have complex logic, often requiring engineers to consult manuals and perform repeated verifications-a process that can take over 10 minutes. In contrast, an intuitively designed interface enables "3-second fault localization and 5-step completion of core operations," serving as a "reliable partner" for late-night operations.
Although the core functions of local interfaces remain consistent across switchgear of varying voltages (from low-voltage to medium- and high-voltage equipment like 12 kV switchgear), their operational logic must be adapted to meet the safety requirements of high-voltage equipment and the specific characteristics of late-night maintenance scenarios. This article will analyze the design principles, key features, and practical case studies of intuitive interfaces, as well as the key application points for 12 kV switchgear, providing a reference for the design and selection of switchgear local interfaces.
I. Key Challenges in Late-Night Operations: The "Four Cardinal Sins" of Traditional Local Interfaces
During late-night shifts, engineers face challenges such as low light levels, reduced concentration, and diminished familiarity with the on-site environment. Design flaws in traditional switchgear local interfaces further exacerbate operational and maintenance difficulties:
1. Difficulty in pinpointing issues: Fault information is "buried deep"
Traditional interfaces typically use monochrome LEDs combined with scrolling text, making it difficult to distinguish fault alarms from normal operating conditions. At a certain substation, a partial discharge alarm occurred in the 12 kV switchgear late at night. It took the engineer 8 minutes to locate the alarm message amid the dense text, missing the optimal window for intervention. Moreover, as switchgear voltage increases and fault types become more complex, the problem of disorganized information hierarchy in traditional interfaces becomes even more pronounced.
2. Cumbersome Operation: Core Functions Take "Detours"
For core operations such as activating backup power, resetting alarms, and viewing parameters, traditional interfaces require 6–8 steps-such as "Menu → Submenu → Confirm → Back"-and the buttons lack clear zoning. During late-night operations, engineers are prone to pressing the wrong buttons due to memory lapses, potentially triggering unintended actions-for instance, in a certain chemical industrial park, an engineer's misoperation of the switchgear equipment's local interface caused the bus tie switch to close unintentionally, resulting in a power outage for some loads.
3. Visual Discomfort: "Difficulty Seeing" in Low Light
Traditional interfaces typically use small monochrome displays and gray buttons, often without backlighting or with non-adjustable backlight brightness. In low-light conditions at night, engineers must rely on flashlights for illumination, which not only makes operation inconvenient but also risks missing critical information due to glare. Additionally, some interfaces lack sufficient contrast between text and background, leading to visual fatigue during prolonged viewing.
4. Safety Hazards: Lack of "Error-Proofing"
The local interfaces of high-voltage equipment, such as 12 kV switchgear, lack error-proofing mechanisms designed for late-night operations: critical operations (such as closing or opening switches) lack secondary confirmation; emergency stop buttons are positioned too close to standard buttons, making it easy to press the wrong button in a panic; and some interfaces lack voltage rating indicators for the switchgear, which may lead to low-voltage operating logic being applied to high-voltage equipment, posing safety risks.
II. The Core of Intuitive Interaction Design: The Implementation Logic Behind "3-Second Localization, 5-Step Operation"
The core of intuitive interaction is an "engineer-centric" approach. Tailored to the needs of late-night operations, it employs "visual optimization, simplified logic, and enhanced safety" to make operations effortless, natural, and seamless:
1. Visual Intuition: The "Three Key Designs" for 3-Second Localization
Color-Coded Alarms: The "red-yellow-green" color scheme intuitively distinguishes between fault, warning, and normal states. Fault alarms for the 12 kV switchgear use a bright red light with flashing indicators, centered at the very top of the display so engineers can see them at a glance; warning information uses a yellow light, and normal status uses a green light to minimize visual distraction;
Large Labels and Backlighting: Buttons feature a large (≥15 mm) design with high contrast, using white text on a black background for clear readability. Both the display and buttons are equipped with adjustable backlighting (3–5 brightness levels). At night, the system can be set to a low-brightness eye-protection mode to avoid glare.
Physical Zone Layout: Buttons are grouped by function into the "Fault Handling Zone," "Parameter Viewing Zone," and "Emergency Operation Zone," with each zone distinguished by different-colored borders or raised markings. For example, the emergency stop button for 12 kV switchgear is positioned separately on the right side of the interface, featuring a large red button with an anti-misoperation design to clearly differentiate it from standard buttons.
2. Logical and Intuitive: The "Golden Process" of 5-Step Operations
The logical design of core operations (such as fault reset, activating backup power, and viewing switchgear voltage parameters) follows the principle of "fewest steps and most intuitive logic," ensuring completion within 5 steps:
Fault Reset Process: 1. Press the "Alarm Query" button (1 second) → 2. The display shows fault details (automatically located, no need to scroll) → 3. Press the "Confirm" button → 4. Press the "Reset" button → 5. Press the "Exit" button; the entire process takes no more than 30 seconds;
Parameter Viewing Process: 1. Press the "Parameters" button → 2. Press the "Voltage" sub-button (directly corresponding to switchgear voltage query) → 3. The display shows real-time voltage values → 4. Press the "Up/Down" keys to cycle through other parameters (e.g., current, temperature) → 5. Press the "Exit" key;
Safety Redundancy Design: Critical operations such as closing and opening the 12 kV switchgear require an additional press of the "Unlock" key to trigger. After the operation, a "Confirm?" prompt will appear on the display to prevent accidental operation during late-night shifts.
3. Scenario Adaptation: "Detailed Optimizations" for Late-Night Operations
Anti-misoperation Design: Buttons feature a convex design, and the spacing between adjacent buttons is ≥8 mm to prevent simultaneous pressing of multiple keys during late-night operations; emergency operation buttons require lifting a safety cover to be pressed, further reducing the risk of accidental activation;
Simplified Information Display: During late-night operations, the interface displays only core information (fault type, device status, key parameters). Secondary information (such as historical data and detailed logs) can be accessed via the "More" button, preventing information overload;
Clear Operational Feedback: Each step is accompanied by clear audible and visual feedback-a "beep" when the correct button is pressed, a flashing green light for successful operations, and a flashing red light plus a buzzer alarm for errors. This allows engineers to determine the outcome of an operation without having to stare at the screen.

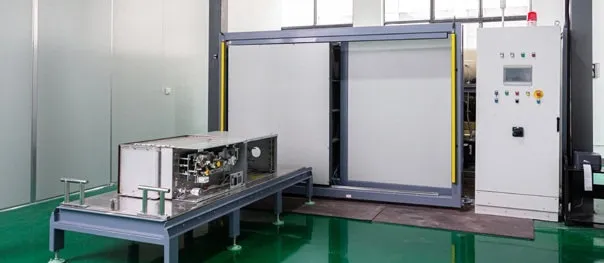

III. Practical Case Study: Application of an Intuitive Local Interface for 12 kV Switchgear
Case Study: Interface Upgrade for 12 kV Switchgear at a City Substation
The 12 kV switchgear at this substation originally used a traditional local interface, which frequently resulted in slow positioning and operational errors during late-night maintenance. Through an interface upgrade (utilizing an intuitive design):
Visual Optimization: The display was upgraded to a 5-inch color touchscreen. Fault alarms are indicated by large red text and flashing alerts, while core parameters such as switchgear voltage are displayed in bold green text. Backlight brightness can be adjusted with a single button press;
Logic Simplification: Core operational workflows were optimized to within 5 steps. For example, to activate the standby power supply: 1. Press the "Power Switch" button → 2. Press the "Standby Power" sub-button → 3. Press the "Unlock" button → 4. Press the "Close" button → 5. Press the "Confirm" button. The operation time was reduced from 12 minutes to 2 minutes;
Safety Enhancements: A secondary confirmation step has been added for critical operations; the emergency stop button is positioned separately and features a tamper-proof cover; the switchgear voltage rating (12 kV) is permanently displayed in the upper-right corner of the interface to prevent misoperation.
Following the upgrade, the average fault resolution time for late-night operations at this substation has been reduced by 70%, and no further malfunctions caused by interface errors have occurred. Engineers have commented, "It's as simple as using a smartphone-no need to memorize anything."
IV. Key Considerations for Selecting and Designing Intuitive Local Interfaces
1. Core Principles for Selection
Voltage Rating Compatibility: For medium- and high-voltage equipment such as 12 kV switchgear, interfaces must include anti-misoperation mechanisms (e.g., unlock buttons, secondary confirmation) and clearly indicate the switchgear voltage rating. For low-voltage equipment, anti-misoperation design can be simplified, but the operating logic must remain straightforward;
Prioritize Scenario Adaptation: Focus on features such as adjustable backlighting, large-size labels, and color-coded alarm zones to ensure usability in low-light environments at night;
Verify Operational Efficiency: Conduct practical tests to verify that core operations (such as fault reset and parameter viewing) require ≤5 steps and that target location takes ≤3 seconds, meeting the safe operation requirements of GB/T 3906-2020 "3.6 kV to 40.5 kV AC Metal-Enclosed Switchgear and Control Gear."
2. Design Optimization Recommendations
Prioritize user research: Conduct surveys on the operational habits and pain points of engineers on late-night shifts to avoid designs based on "assumed rationality";
Digital Assistance: High-end switchgear equipment can incorporate QR codes on local interfaces; engineers can scan these with their smartphones to access operating guidelines and fault handling procedures, aiding complex operations during late-night shifts;
Regular Iterative Upgrades: Optimize interface logic based on O&M feedback. For example, a certain brand of 12 kV switchgear, following engineer suggestions, designated the "Standby Power Start" button as a custom shortcut key, further reducing operation time.
Industry Insight: Interface Design Is an "Invisible Safety Net"
The local interface of switchgear may appear to be a mere "accessory" to the equipment, but it is actually a "core factor" influencing operational efficiency and safety. This is particularly true for medium- and high-voltage equipment such as 12 kV switchgear, where every second counts during late-night maintenance. An intuitive local interface allows engineers to "avoid detours and minimize errors," essentially reducing the risk of human error through design and enhancing equipment reliability.
In the future, switchgear local interfaces will evolve toward being "smarter and more context-aware": integrating AI algorithms to predict faults, simplifying operations through voice interaction, and adapting to AR glasses for visual guidance-making late-night operations easier and safer. For enterprises, selecting switchgear equipment with an intuitive local interface not only improves operational efficiency but also provides engineers on late-night shifts with a safety net that is both "easy to see and use."
