In the vast and complex world of electrical power systems, switchgear serves as the critical nerve center. It is the essential equipment responsible for protecting, controlling, and isolating electrical circuits, ensuring the safe and reliable flow of energy from generation plants to end-users. Among the various technologies available, air insulated switchgear ais remains one of the most widely deployed, time-tested, and foundational solutions for medium-voltage substations worldwide.
While newer, more compact technologies like Gas-Insulated Switchgear (GIS) have found their niche in space-constrained projects, air insulated switchgear continues to be a preferred choice for many power investors, EPC contractors and grid operators. Its enduring prevalence is a testament to its inherent reliability, operational flexibility, and compelling economic advantages. Modern air insulated substation designs further amplify these strengths, delivering stable performance for utility and industrial power distribution. At LVMA Electric, we further elevate air insulated switchgear ais performance with precision manufacturing: our jig-verified drawer interchangeability has successfully passed inspection by German engineers, delivering consistent quality for global medium-voltage power distribution projects.
This guide will provide a deep, technical dive into air insulated switchgear. We will explore its fundamental principles, break down core components, analyze key design considerations, compare air insulated switchgear ais with other switchgear technologies, and highlight LVMA's manufacturing advantage on drawer interchangeability, to help engineers, planners, and asset managers make informed decisions for air insulated substation deployment.
What is Air-Insulated Switchgear (AIS)?
Air insulated switchgear is a type of switchgear that uses atmospheric air as the primary dielectric medium to insulate energized conductors from each other and the ground. As the core equipment of a standard air insulated substation, it defines the safety and operational standards of the entire power distribution system.
The core principle of air insulated switchgear ais relies on sufficient physical clearance. By maintaining designed safe distances between high-voltage components, the natural dielectric strength of surrounding air prevents electrical flashovers. This design means air insulated switchgear is commonly deployed for outdoor and indoor substations, with layout dimensions determined by required electrical clearances.
This differs fundamentally from GIS, which encapsulates conductors inside sealed metal tanks filled with high-dielectric gas. The insulation principle directly drives differences in footprint, capital expenditure, installation and maintenance between air insulated switchgear ais and GIS solutions.
The Anatomy of AIS
An air insulated substation assembly integrates multiple standalone functional units connected by busbars. Understanding each component is key to grasping overall system performance of air insulated switchgear.
Circuit Breaker: The core protection unit. It switches normal load current and trips rapidly under short-circuit faults. Vacuum interrupters are widely adopted in medium-voltage air insulated switchgear ais for stable arc extinction.
Disconnector (Isolator): Provides visible isolation points for maintenance. It can only operate under no-load conditions to guarantee field worker safety, a mandatory safety feature for all air insulated substation setups.
Earthing Switch: Connects de-energized circuits to the substation earthing grid to discharge residual energy and avoid accidental energization hazards. Some versions support fault-making capability.
Current Transformers (CTs) & Voltage Transformers (VTs): Instrument transformers that step down high current and voltage into low-level signals for protection relays, metering and synchronization.
Surge Arrester: Shunts lightning or switching overvoltage to ground, protecting expensive transformers and air insulated switchgear internal components.
Busbars: Main conductive paths linking each switchgear bay, distributing power inside the air insulated substation.

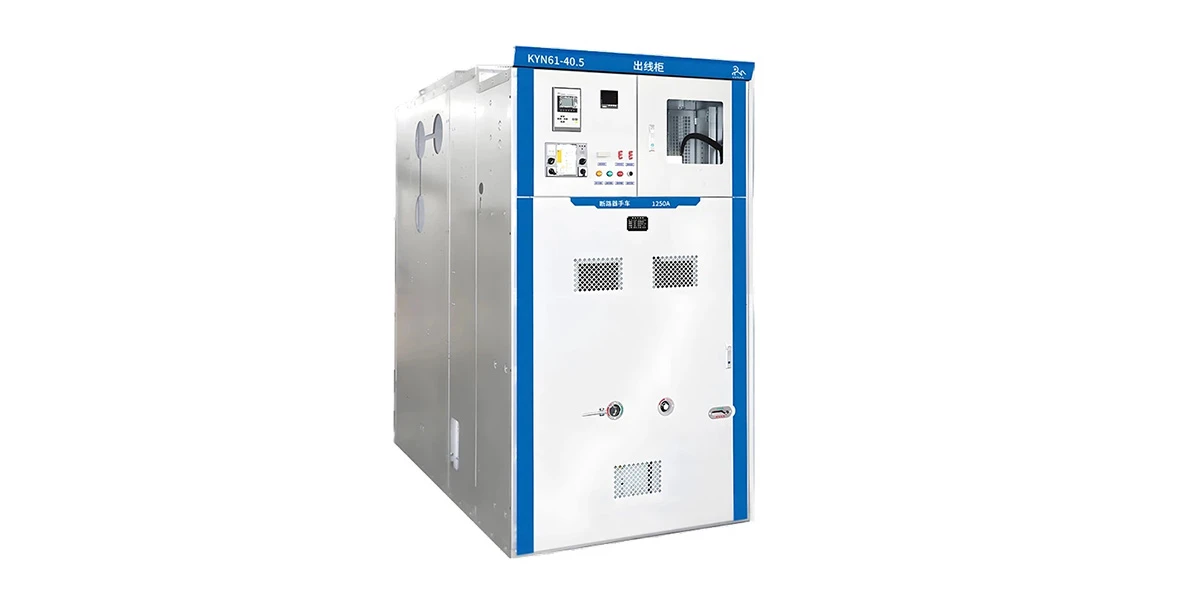

Drawer Unit (MV Withdrawable Module): A key feature for indoor medium-voltage air insulated switchgear ais. The withdrawable drawer houses circuit breakers and related control components. Drawer interchangeability allows quick replacement of identical drawers without re-calibration, greatly cutting downtime during maintenance. This is where LVMA's manufacturing strength stands out: all drawers are processed with dedicated jigs, and this interchangeability has been verified and approved by German engineers. Identical drawers can be swapped freely, improving site maintenance efficiency and reducing project downtime for global air insulated switchgear projects.
Support Structures & Insulators: Steel frames provide mechanical support, while insulators separate live parts from grounded structures, ensuring stable operation of air insulated substation equipment.
AIS vs GIS
|
Parameter |
Air-Insulated Switchgear (AIS) |
Gas-Insulated Switchgear (GIS) |
|---|---|---|
|
Footprint |
Larger, fits standard air insulated substation layout requirements |
Very compact |
|
Primary Insulation |
Atmospheric air (core advantage of air insulated switchgear ais) |
Insulating gas |
|
Initial Capital Cost |
Lower, cost-effective for mass air insulated switchgear deployment |
Much higher |
|
Installation & Commissioning |
Straightforward for standard indoor air insulated switchgear ais; modular assembly |
Factory pre-assembled modules, high precision requirement |
|
Maintenance |
Routine inspection and insulator cleaning; withdrawable drawer design simplifies part replacement for air insulated substation |
Low maintenance, but gas handling and leak inspection required |
|
Flexibility & Scalability |
High. Easy to add new bays or replace drawer units for air insulated switchgear |
Low. Modification and extension are complicated and costly |
|
Fault Location & Repair |
Easy visual inspection; interchangeable drawers enable fast on-site repair for air insulated switchgear ais |
Harder internal fault detection; repair requires gas recovery |
|
Environmental Impact |
Minimal, uses air as insulation |
Potential gas leakage risk |
When to Choose AIS
Air insulated switchgear ais is the optimal selection when land space is available and project budget control matters. Its high scalability makes it ideal for projects expecting future expansion. For indoor medium voltage distribution, withdrawable air insulated switchgear with interchangeable drawers brings extra operational convenience for industrial plants, commercial complexes and utility air insulated substation networks.
Key Design and Manufacturing Considerations for AIS
Busbar Configuration
Typical schemes include single busbar and double busbar setups, balancing reliability, cost and operational flexibility for air insulated switchgear ais systems.
Electrical Clearance & Creepage Distance
Phase-to-phase and phase-to-ground clearances must comply with IEC standards to avoid flashover. In coastal or heavily polluted areas, longer insulator creepage distance is required to resist salt spray and contamination, ensuring stable operation of air insulated substation and air insulated switchgear.
Earthing System
A reliable earthing grid controls step and touch potentials during earth faults to protect field personnel working on air insulated switchgear ais equipment.
Mechanical Precision: Drawer Interchangeability
For withdrawable type air insulated switchgear, drawer interchangeability is a critical manufacturing benchmark. Without precise jig control, drawers from the same batch may fail to fit smoothly, leading to on-site assembly delays and maintenance troubles forair insulated substation projects.
LVMA adopts dedicated jigs to guarantee consistent machining tolerance for every drawer. Our jig-verified drawer interchangeability has passed German engineer inspection. Identical drawer units can be interchanged freely, ensuring consistent mechanical alignment and electrical contact performance for all air insulated switchgear ais products. This quality control standard helps overseas EPC and end users reduce site fitting work and improve equipment availability.
Civil & Structural Design
Equipment foundations must withstand static load, wind, seismic and short-circuit forces to secure long-term safe operation of air insulated switchgear systems.
Advantages and Disadvantages of Air-Insulated Switchgear
Advantages
Lower initial investment compared with GIS, cost-effective for large-scale air insulated substation construction
High scalability and flexible layout for customized air insulated switchgear ais solutions
Easy fault inspection and maintenance for on-site teams
Mature, proven technology with wide global reference cases
Withdrawable drawer version supports fast unit replacement (LVMA's interchangeable drawer further maximizes this benefit)
Disadvantages
Larger footprint than GIS, requiring standardized air insulated substation space planning
Outdoor air insulated switchgear is exposed to pollution, salt fog and wildlife risks
Periodic insulator cleaning is required for heavy-pollution environments to maintain air insulated switchgear ais performance
Conclusion
While GIS offers compact solutions for space-limited projects, air insulated switchgear remains a reliable and cost-effective backbone for medium-voltage power distribution worldwide. Its simplicity, scalability and economic value make it the preferred option for numerous greenfield and upgrade air insulated substation projects.
The selection of air insulated switchgear ais is a strategic decision balancing budget, space, maintenance plan and future expansion. Beyond design principles, manufacturing precision determines long-term operational experience. LVMA Electric delivers high-quality air insulated switchgear solutions with rigorously tested, jig-verified drawer interchangeability, which has passed German engineer inspection. We keep adhering to our brand philosophy Smart Power, Safe Life, providing dependable medium and low voltage power distribution equipment for global electrical buyers, EPC contractors and grid operators.
