Lots of field workers and project buyers look for good 12 kv switchgear and reliable medium‑voltage power gear for factories, solar sites, and city power jobs. Many people have heard about vacuum switchgear but do not really understand how it performs compared with other cabinet types. This article uses plain language to walk you through basic definitions, how it runs, main parts, side‑by‑side comparisons and practical buying tips to help you make better decisions for your site.
What Is Vacuum Switchgear?

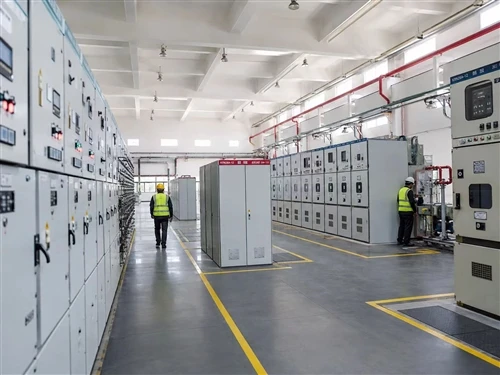

Vacuum switchgear is a widely-used medium-voltage power cabinet for controlling and protecting power circuits. People also call it vacuum insulated switchgear from time to time. Inside its key parts, it uses vacuum space instead of air or special gas to handle high-voltage insulation and arc-quenching duties. You will see this equipment installed in factory power rooms, municipal power networks, wind and solar stations, and large commercial buildings. This kind of cabinet is built tough for long-time running, so it becomes a common pick for many distribution projects.
How Vacuum Switchgear Works: The Vacuum Interrupter
The vacuum interrupter is the heart that makes vacuum switchgear do its job properly. This part is fully sealed, and nearly all air is taken out of its inner chamber. When operators turn power on or off, or when short-circuit and overload faults pop up, the metal contacts inside the vacuum interrupter pull apart quickly. The metal vapor that carries the arc condenses back onto the contacts within milliseconds, so the arc has nothing left to sustain it and dies out at the next current zero. This simple working method lets vacuum switchgear cut fault current safely.
The whole process is clean and efficient. No harmful gas or extreme heat escapes during this process, which keeps on-site workers safer.
Key Components of Vacuum Switchgear: Inside the Vacuum Circuit Breaker
A complete set of vacuum switchgear has many parts, and the vacuum circuit breaker stands as its most important unit. Apart from the built-in vacuum interrupter inside the vacuum circuit breaker, you also get main busbars for power transfer, operating mechanisms (spring or magnetic drives) that open and close the contacts, earthing switches for safe power cut-off work, and cable compartments for wiring connection. Every part has its own clear job. When something goes wrong on-site, most of the real action happens inside the vacuum circuit breaker. Other supporting components keep the whole cabinet stable and make manual operations safer for field staff.
Table 1. Key components of vacuum switchgear and their functions
|
Component |
Primary Function |
Key Detail |
Why It Matters |
|
Vacuum circuit breaker |
Switches and protects circuits; interrupts fault current |
Built-in vacuum interrupter, sealed for life |
Heart of the cabinet; defines system uptime |
|
Busbar |
Distributes power between incoming and outgoing feeders |
Copper or aluminum bars |
Robust busbars mean low losses and less heat |
|
Operating mechanism |
Opens and closes breaker contacts |
Spring or magnetic drive |
Simple mechanism lowers failure rate |
|
Earthing switch |
Earths the circuit before maintenance |
Manual or motor-operated; interlocked |
Protects field workers during repairs |
|
Cable compartment |
Terminates incoming and outgoing cables |
Cable lugs, CTs/PTs, clear wiring layout |
Good design eases installation and upkeep |
Vacuum Switchgear vs SF6 vs Air: Which Is Better?
If you are shopping for medium-voltage cabinets, you will run into these three main types, and each fits different real-world conditions.
1. Air-insulated switchgear. It costs less and is easy to set up. But it needs plenty of installation room. Dust and wet weather will influence its performance. It only works well for clean, dry indoor power rooms.
2. SF6 switchgear. It is small in size and delivers solid insulation performance. Still, it relies on a special greenhouse gas. You must check sealing status and add gas regularly, and these works will raise your long-term running cost.
3. Vacuum switchgear. It balances safety, cost and environmental performance. It can work under most site conditions, creates no pollution, and does not require frequent maintenance work. For most factory, municipal and renewable energy projects, vacuum insulated switchgear is a very practical choice.
How to Choose the Right Vacuum Switchgear for Your Project?
When you plan to order vacuum switchgear, do not only look at the product price. You need to think over several real-site points first. Check your local working environment: if your site is humid, dusty, or near the coast, make sure the cabinet shell can resist corrosion. Confirm your actual rated current and short-circuit fault requirements; these numbers decide which vacuum circuit breaker you should use.
Measure the space of your power room, so the cabinet can fit well during installation. You also need to think about possible later expansion; leave enough room if you may add more circuits in the future. Budget is another factor; do not blindly chase overly high specs that your project never really needs.
If you still feel confused about picking vacuum switchgear for your job, send over your project information including site environment, load requirement, power-room size and budget range. LVMA's electrical engineers can give you down-to-earth selection suggestions and send you a detailed equipment quote.
